#include <bsdf.h>

Public Member Functions
	LM_ASSET_INTERFACE_DEF ("bsdf","bsdfs")

	LM_ASSET_DEPENDENCIES ("texture")

Public Member Functions inherited from GeneralizedBSDF
virtual bool	SampleDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const =0

virtual Math::Vec3	SampleAndEstimateDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const =0

virtual bool	SampleAndEstimateDirectionBidir (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleBidirResult &result) const =0

virtual Math::Vec3	EvaluateDirection (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const =0

virtual Math::PDFEval	EvaluateDirectionPDF (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const =0

virtual int	BSDFTypes () const =0

Public Member Functions inherited from Asset
virtual bool	Load (const ConfigNode &node, const Assets &assets)=0

LM_PUBLIC_API std::string	ID () const

LM_HIDDEN_API void	SetID (const std::string &id)

Public Member Functions inherited from Component
virtual std::string	ComponentInterfaceTypeName () const =0

virtual std::string	ComponentImplTypeName () const =0

Public Member Functions inherited from SIMDAlignedType
void *	operator new (std::size_t size) throw (std::bad_alloc)

void	operator delete (void *p)

Static Protected Member Functions
static LM_FORCE_INLINE Math::Float	ShadingNormalCorrectionFactor (const TransportDirection &transportDir, const SurfaceGeometry &geom, const Math::Vec3 &localWi, const Math::Vec3 &localWo, const Math::Vec3 &worldWi, const Math::Vec3 &worldWo)

Detailed Description

BSDF. A base class for BSDF implementations.

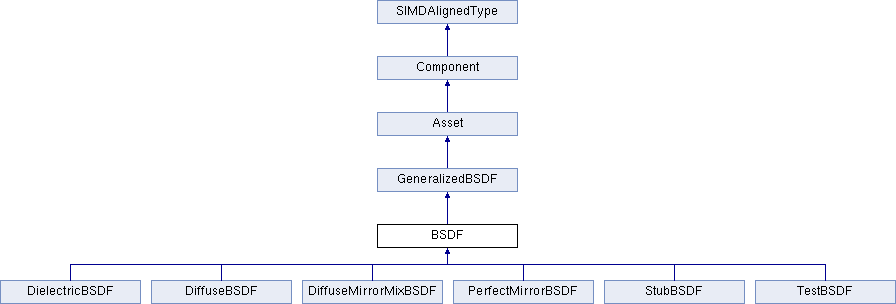

Inheritance diagram for BSDF:

Member Function Documentation

static LM_FORCE_INLINE Math::Float BSDF::ShadingNormalCorrectionFactor	(	const TransportDirection &	transportDir,
		const SurfaceGeometry &	geom,
		const Math::Vec3 &	localWi,
		const Math::Vec3 &	localWo,
		const Math::Vec3 &	worldWi,
		const Math::Vec3 &	worldWo
	)

inlinestaticprotected

Compute correction factor for shading normal. See [Veach 1997] for details.

Parameters

transportDir	Transport direction.
geom	Surface geometry.
localWi	#wi in local shading coordinates.
localWo	#wo in local shading coordinates.
worldWi	#wi in world coordinates.
worldWo	#wo in world coordinates.

The documentation for this class was generated from the following file:
