#include <renderer.h>

Public Member Functions
	LM_COMPONENT_INTERFACE_DEF ("renderer")

virtual std::string	Type () const =0

virtual bool	Configure (const ConfigNode &node, const Assets &assets, const Scene &scene, const RenderProcessScheduler &sched)=0

virtual bool	Preprocess (const Scene &scene, const RenderProcessScheduler &sched)=0

virtual bool	Postprocess (const Scene &scene, const RenderProcessScheduler &sched) const =0

virtual RenderProcess *	CreateRenderProcess (const Scene &scene, int threadID, int numThreads)=0

virtual boost::signals2::connection	Connect_ReportProgress (const std::function< void(double, bool)> &func)=0

Public Member Functions inherited from Component
virtual std::string	ComponentInterfaceTypeName () const =0

virtual std::string	ComponentImplTypeName () const =0

Public Member Functions inherited from SIMDAlignedType
void *	operator new (std::size_t size) throw (std::bad_alloc)

void	operator delete (void *p)

Detailed Description

Renderer class. A base class of the renderer.

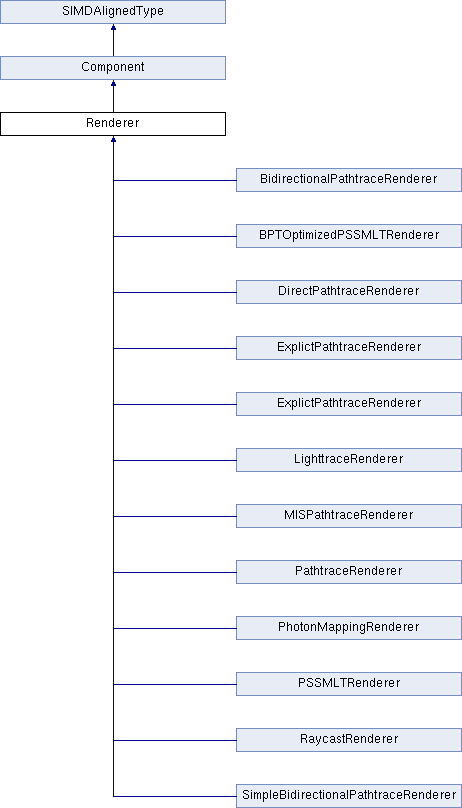

Inheritance diagram for Renderer:

Member Function Documentation

virtual bool Renderer::Configure	(	const ConfigNode &	node,
		const Assets &	assets,
		const Scene &	scene,
		const RenderProcessScheduler &	sched
	)

pure virtual

Configure the renderer from XML element.

Parameters

node	A XML element which consists of renderer element.
assets	Assets manager.
scene	Scene.
sched	Render process scheduler.

Return values

true	Succeeded to configure.
false	Failed to configure.

Implemented in PSSMLTRenderer, BidirectionalPathtraceRenderer, BPTOptimizedPSSMLTRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, SimpleBidirectionalPathtraceRenderer, MISPathtraceRenderer, PathtraceRenderer, and RaycastRenderer.

virtual boost::signals2::connection Renderer::Connect_ReportProgress ( const std::function< void(double, bool)> & func )

pure virtual

Connect to ReportProgress signal. The signal is emitted when the progress of asset loading is changed.

Parameters

func	Slot function.

Implemented in PSSMLTRenderer, BidirectionalPathtraceRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, MISPathtraceRenderer, PathtraceRenderer, and RaycastRenderer.

virtual RenderProcess* Renderer::CreateRenderProcess	(	const Scene &	scene,
		int	threadID,
		int	numThreads
	)

pure virtual

Create a render process. Creates a new instance of the render process associated with the renderer. This function called from the render process scheduler. Ownership of the created instance is delegated to the caller.

Parameters

scene	Scene.
threadID	Thread ID of the process.
numThreads	Number of threads.

Returns: An instance of render process.

Implemented in PSSMLTRenderer, BidirectionalPathtraceRenderer, BPTOptimizedPSSMLTRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, SimpleBidirectionalPathtraceRenderer, MISPathtraceRenderer, PathtraceRenderer, and RaycastRenderer.

virtual bool Renderer::Postprocess	(	const Scene &	scene,
		const RenderProcessScheduler &	sched
	)		const

pure virtual

Postprocess the renderer. This function is called after render process are completed.

Parameters

scene	Scene.
sched	Render process scheduler.

Return values

true	Succeeded to postprocess.
false	Failed to postprocess.

Implemented in PSSMLTRenderer, BidirectionalPathtraceRenderer, BPTOptimizedPSSMLTRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, SimpleBidirectionalPathtraceRenderer, MISPathtraceRenderer, PathtraceRenderer, and RaycastRenderer.

virtual bool Renderer::Preprocess	(	const Scene &	scene,
		const RenderProcessScheduler &	sched
	)

pure virtual

Preprocess the renderer. Preprocess required by some renderers are dispatched in this function.

Parameters

scene	Scene.
sched	Render process scheduler.

Return values

true	Succeeded to preprocess.
false	Failed to preprocess.

Implemented in PSSMLTRenderer, BidirectionalPathtraceRenderer, BPTOptimizedPSSMLTRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, SimpleBidirectionalPathtraceRenderer, MISPathtraceRenderer, PathtraceRenderer, and RaycastRenderer.

virtual std::string Renderer::Type ( ) const

pure virtual

Get renderer type.

Returns: Renderer type.

Implemented in ExplictPathtraceRenderer, PSSMLTRenderer, BidirectionalPathtraceRenderer, BPTOptimizedPSSMLTRenderer, PhotonMappingRenderer, DirectPathtraceRenderer, LighttraceRenderer, SimpleBidirectionalPathtraceRenderer, MISPathtraceRenderer, PathtraceRenderer, RaycastRenderer, and ExplictPathtraceRenderer.

The documentation for this class was generated from the following file:

/home/travis/build/hi2p-perim/lightmetrica/include/lightmetrica/renderer.h
