Public Member Functions
	LM_COMPONENT_IMPL_DEF ("env.const")

virtual bool	Load (const ConfigNode &node, const Assets &assets) override

virtual bool	SampleDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const override

virtual Math::Vec3	SampleAndEstimateDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const override

virtual bool	SampleAndEstimateDirectionBidir (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleBidirResult &result) const override

virtual Math::Vec3	EvaluateDirection (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const override

virtual Math::PDFEval	EvaluateDirectionPDF (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const override

virtual int	BSDFTypes () const override

virtual void	SamplePosition (const Math::Vec2 &sample, SurfaceGeometry &geom, Math::PDFEval &pdf) const override

virtual Math::Vec3	EvaluatePosition (const SurfaceGeometry &geom) const override

virtual Math::PDFEval	EvaluatePositionPDF (const SurfaceGeometry &geom) const override

virtual void	RegisterPrimitives (const std::vector< Primitive * > &primitives) override

virtual void	PostConfigure (const Scene &scene) override

virtual EmitterShape *	CreateEmitterShape () const override

virtual AABB	GetAABB () const override

virtual bool	EnvironmentLight () const override

Public Member Functions inherited from Light
	LM_ASSET_INTERFACE_DEF ("light","lights")

	LM_ASSET_NO_DEPENDENCIES ()

Public Member Functions inherited from Asset
LM_PUBLIC_API std::string	ID () const

LM_HIDDEN_API void	SetID (const std::string &id)

Public Member Functions inherited from Component
virtual std::string	ComponentInterfaceTypeName () const =0

virtual std::string	ComponentImplTypeName () const =0

Public Member Functions inherited from SIMDAlignedType
void *	operator new (std::size_t size) throw (std::bad_alloc)

void	operator delete (void *p)

Detailed Description

Constant environment light. Implements environment light with constant luminance.

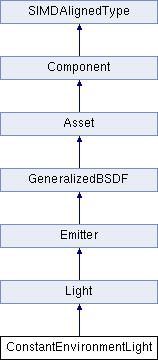

Inheritance diagram for ConstantEnvironmentLight:

Member Function Documentation

virtual int ConstantEnvironmentLight::BSDFTypes ( ) const

inlineoverridevirtual

Check if generalized BSDF is directionally degenerated. e.g. specular BSDFs or directional light

Return values

true	The BSDF is directionally degenerated.
false	The BSDF is not directionally degenerated.

Get generalized BSDF type. If the generalized BSDF has multiple types, e.g. SpecularReflection and SpecularReflection, a bitmask of these types are returned.

Returns: Types.

Implements GeneralizedBSDF.

EmitterShape * ConstantEnvironmentLight::CreateEmitterShape ( ) const

overridevirtual

Get associated emitter shapes. Some emitter is associated with intersectable shapes (e.g., sphere for environment lights) in order to integrate emitters with BPT based rendering techniques. Ownership of the created instance is delegated to the caller.

Returns: Instance of emitter shape.

Implements Emitter.

virtual bool ConstantEnvironmentLight::EnvironmentLight ( ) const

inlineoverridevirtual

Check if the light is environment light.

Return values

true	The light is environment light.
false	The light is not environment light.

Implements Light.

Math::Vec3 ConstantEnvironmentLight::EvaluateDirection	(	const GeneralizedBSDFEvaluateQuery &	query,
		const SurfaceGeometry &	geom
	)		const

overridevirtual

Evaluate generalized BSDF.

Parameters

query	Query structure.
geom	Surface geometry.

Returns: Evaluated contribution.

Implements GeneralizedBSDF.

Math::PDFEval ConstantEnvironmentLight::EvaluateDirectionPDF	(	const GeneralizedBSDFEvaluateQuery &	query,
		const SurfaceGeometry &	geom
	)		const

overridevirtual

Evaluate directional PDF.

Parameters

query	Query structure.
geom	Surface geometry.

Returns: Evaluated PDF.

Implements GeneralizedBSDF.

Math::Vec3 ConstantEnvironmentLight::EvaluatePosition ( const SurfaceGeometry & geom ) const

overridevirtual

Evaluate the positional component of the emitted quantity.

Parameters

geom	Surface geometry.

Returns: Positional component of the emitted quantity.

Implements Emitter.

Math::PDFEval ConstantEnvironmentLight::EvaluatePositionPDF ( const SurfaceGeometry & geom ) const

overridevirtual

Evaluate positional PDF.

Parameters

geom	Surface geometry.

Returns: Evaluated PDF.

Implements Emitter.

bool ConstantEnvironmentLight::Load	(	const ConfigNode &	node,
		const Assets &	assets
	)

overridevirtual

Load an asset. Configure and initialize the asset by the XML elements given by #node. Some assets have references to the other assets, so #assets is also required. Dependent asset must be loaded beforehand.

Parameters

node	XML node for the configuration.
assets	Asset manager.
true	Succeeded to load.
false	Failed to load.

Implements Asset.

void ConstantEnvironmentLight::PostConfigure ( const Scene & scene )

overridevirtual

Post configuration after scene is built. Some emitter needs to be configured after scene is built. TODO : Replace RegisterPrimitive function with this function.

Parameters

scene Scene.

Implements Emitter.

virtual void ConstantEnvironmentLight::RegisterPrimitives ( const std::vector< Primitive * > & primitives )

inlineoverridevirtual

Register an reference to the primitive. Some implementation of camera needs transformed mesh information for sampling. The function registers the reference to the primitive. The function is internally called.

Parameters

primitives An list instances of the primitive.

Implements Emitter.

Math::Vec3 ConstantEnvironmentLight::SampleAndEstimateDirection	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleResult &	result
	)		const

overridevirtual

Sample and estimate direction. Computes f_s / p_{^}.

Parameters

query	Query structure.
geom	Surface geometry.
result	Sampled result.

Returns: Estimate.

Implements GeneralizedBSDF.

bool ConstantEnvironmentLight::SampleAndEstimateDirectionBidir	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleBidirResult &	result
	)		const

overridevirtual

Sample and estimate direction bidirectionally. In addition to SampleAndEstimateDirection, this function calculates values in the opposite direction. This function is introduced in order to avoid nasty precision problem with specular BSDFs.

Parameters

query	Query structure.
geom	Surface geometry.
weights	Estimate.
results	Sampled results.

Return values

true	Succeeded to sample.
false	Failed to sample.

Implements GeneralizedBSDF.

bool ConstantEnvironmentLight::SampleDirection	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleResult &	result
	)		const

overridevirtual

Sample outgoing vector. Given the input direction originated from the point on the surface #wi, the function samples outgoing vector #wo from the suited distribution in the solid angle measure.

Parameters

query	Query structure.
geom	Surface geometry.
result	Sampled result.

Return values

true	Succeeded to sample #wo.
false	Failed to sample #wo.

Implements GeneralizedBSDF.

void ConstantEnvironmentLight::SamplePosition	(	const Math::Vec2 &	sample,
		SurfaceGeometry &	geom,
		Math::PDFEval &	pdf
	)		const

overridevirtual

Sample a position on the light.

Parameters

sample	Position sample.
geom	Surface geometry at sampled position #geom.p.
pdf	Evaluated PDF (area measure).

Implements Emitter.

The documentation for this class was generated from the following file:

/home/travis/build/hi2p-perim/lightmetrica/src/liblightmetrica/light.env.const.cpp
