Public Member Functions
	LM_COMPONENT_IMPL_DEF ("thinlens")

virtual bool	Load (const ConfigNode &node, const Assets &assets)

virtual bool	SampleDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const

virtual Math::Vec3	SampleAndEstimateDirection (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleResult &result) const

virtual bool	SampleAndEstimateDirectionBidir (const GeneralizedBSDFSampleQuery &query, const SurfaceGeometry &geom, GeneralizedBSDFSampleBidirResult &result) const

virtual Math::Vec3	EvaluateDirection (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const

virtual Math::PDFEval	EvaluateDirectionPDF (const GeneralizedBSDFEvaluateQuery &query, const SurfaceGeometry &geom) const

virtual bool	Degenerated () const

virtual int	BSDFTypes () const

virtual void	SamplePosition (const Math::Vec2 &sample, SurfaceGeometry &geom, Math::PDFEval &pdf) const

virtual Math::Vec3	EvaluatePosition (const SurfaceGeometry &geom) const

virtual Math::PDFEval	EvaluatePositionPDF (const SurfaceGeometry &geom) const

virtual void	RegisterPrimitives (const std::vector< Primitive * > &primitives)

virtual bool	RayToRasterPosition (const Math::Vec3 &p, const Math::Vec3 &d, Math::Vec2 &rasterPos) const

virtual Film *	GetFilm () const

Public Member Functions inherited from Camera
	LM_ASSET_INTERFACE_DEF ("camera","cameras")

	LM_ASSET_DEPENDENCIES ("film")

Public Member Functions inherited from Emitter
virtual void	PostConfigure (const Scene &scene)=0

virtual EmitterShape *	CreateEmitterShape () const =0

virtual AABB	GetAABB () const =0

Public Member Functions inherited from Asset
LM_PUBLIC_API std::string	ID () const

LM_HIDDEN_API void	SetID (const std::string &id)

Public Member Functions inherited from Component
virtual std::string	ComponentInterfaceTypeName () const =0

virtual std::string	ComponentImplTypeName () const =0

Public Member Functions inherited from SIMDAlignedType
void *	operator new (std::size_t size) throw (std::bad_alloc)

void	operator delete (void *p)

Detailed Description

Thin-lens camera. A camera with depth of field support.

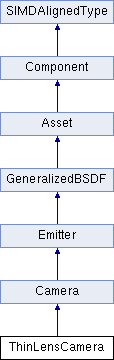

Inheritance diagram for ThinLensCamera:

Member Function Documentation

virtual int ThinLensCamera::BSDFTypes ( ) const

inlinevirtual

Check if generalized BSDF is directionally degenerated. e.g. specular BSDFs or directional light

Return values

true	The BSDF is directionally degenerated.
false	The BSDF is not directionally degenerated.

Get generalized BSDF type. If the generalized BSDF has multiple types, e.g. SpecularReflection and SpecularReflection, a bitmask of these types are returned.

Returns: Types.

Implements GeneralizedBSDF.

Math::Vec3 ThinLensCamera::EvaluateDirection	(	const GeneralizedBSDFEvaluateQuery &	query,
		const SurfaceGeometry &	geom
	)		const

virtual

Evaluate generalized BSDF.

Parameters

query	Query structure.
geom	Surface geometry.

Returns: Evaluated contribution.

Implements GeneralizedBSDF.

Math::PDFEval ThinLensCamera::EvaluateDirectionPDF	(	const GeneralizedBSDFEvaluateQuery &	query,
		const SurfaceGeometry &	geom
	)		const

virtual

Evaluate directional PDF.

Parameters

query	Query structure.
geom	Surface geometry.

Returns: Evaluated PDF.

Implements GeneralizedBSDF.

Math::Vec3 ThinLensCamera::EvaluatePosition ( const SurfaceGeometry & geom ) const

virtual

Evaluate the positional component of the emitted quantity.

Parameters

geom	Surface geometry.

Returns: Positional component of the emitted quantity.

Implements Emitter.

Math::PDFEval ThinLensCamera::EvaluatePositionPDF ( const SurfaceGeometry & geom ) const

virtual

Evaluate positional PDF.

Parameters

geom	Surface geometry.

Returns: Evaluated PDF.

Implements Emitter.

virtual Film* ThinLensCamera::GetFilm ( ) const

inlinevirtual

Get film. Returns the film referenced by the camera.

Parameters

Film.

Implements Camera.

bool ThinLensCamera::Load	(	const ConfigNode &	node,
		const Assets &	assets
	)

virtual

Load an asset. Configure and initialize the asset by the XML elements given by #node. Some assets have references to the other assets, so #assets is also required. Dependent asset must be loaded beforehand.

Parameters

node	XML node for the configuration.
assets	Asset manager.
true	Succeeded to load.
false	Failed to load.

Implements Asset.

bool ThinLensCamera::RayToRasterPosition	(	const Math::Vec3 &	p,
		const Math::Vec3 &	d,
		Math::Vec2 &	rasterPos
	)		const

virtual

Convert a ray to a raster position. The function calculates the raster position from the outgoing ray. Returns false if calculated raster position is the outside of [0, 1]^2.

Parameters

p	Position on the camera.
d	Outgoing direction from #p.
rasterPos	Raster position.

Returns: true Succeeded to convert.; false Failed to convert.

Implements Camera.

void ThinLensCamera::RegisterPrimitives ( const std::vector< Primitive * > & primitives )

virtual

Register an reference to the primitive. Some implementation of camera needs transformed mesh information for sampling. The function registers the reference to the primitive. The function is internally called.

Parameters

primitives An list instances of the primitive.

Implements Emitter.

Math::Vec3 ThinLensCamera::SampleAndEstimateDirection	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleResult &	result
	)		const

virtual

Sample and estimate direction. Computes f_s / p_{^}.

Parameters

query	Query structure.
geom	Surface geometry.
result	Sampled result.

Returns: Estimate.

Implements GeneralizedBSDF.

virtual bool ThinLensCamera::SampleAndEstimateDirectionBidir	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleBidirResult &	result
	)		const

inlinevirtual

Sample and estimate direction bidirectionally. In addition to SampleAndEstimateDirection, this function calculates values in the opposite direction. This function is introduced in order to avoid nasty precision problem with specular BSDFs.

Parameters

query	Query structure.
geom	Surface geometry.
weights	Estimate.
results	Sampled results.

Return values

true	Succeeded to sample.
false	Failed to sample.

Implements GeneralizedBSDF.

bool ThinLensCamera::SampleDirection	(	const GeneralizedBSDFSampleQuery &	query,
		const SurfaceGeometry &	geom,
		GeneralizedBSDFSampleResult &	result
	)		const

virtual

Sample outgoing vector. Given the input direction originated from the point on the surface #wi, the function samples outgoing vector #wo from the suited distribution in the solid angle measure.

Parameters

query	Query structure.
geom	Surface geometry.
result	Sampled result.

Return values

true	Succeeded to sample #wo.
false	Failed to sample #wo.

Implements GeneralizedBSDF.

void ThinLensCamera::SamplePosition	(	const Math::Vec2 &	sample,
		SurfaceGeometry &	geom,
		Math::PDFEval &	pdf
	)		const

virtual

Sample a position on the light.

Parameters

sample	Position sample.
geom	Surface geometry at sampled position #geom.p.
pdf	Evaluated PDF (area measure).

Implements Emitter.

The documentation for this class was generated from the following file:

/home/travis/build/hi2p-perim/lightmetrica/src/liblightmetrica/thinlenscamera.cpp
